HematologyOutlines - Atlas
Primary Hematopoietic and Lymphoid Tissue ›› Bone Marrow ›› Normal

Eosinophil (Mature)*


Click Here for Full Size


Additional Image 1

› Microscopic Features:
  • 2-3x larger than a mature RBC
  • Low nuclear to cytoplasmic ratio (more cytoplasm than nucleus)
  • Nucleus is mature and usually with 2 lobes connected by thin chromatin filament
  • Nucleoli are absent
  • More cytoplasm with only secondary granules
  • Secondary (specific) granules are eosinophilic (red-orange)
› Normal % blood-PB, marrow-BM, lymphoid tissue-LN:
  • PB: Scattered (4th most common WBC in blood, after neutrophils, lymphocytes and monocytes)
  • BM: Rare scattered
  • LN: Rare to None
› May Resemble:
  • Segmented Neutrophil
  • Pseudo-Pelger Huet Neutrophil
  • Band Neutrophil
  • Neutrophil with toxic granules
  • Promyelocyte
  • Basophil
› Differential Diagnoses:

Increased in:
Allergy-related (e.g. Asthma)
Drug reactions
Invasive parasitic infections
Myeloproliferative neoplasms
Hodgkin's and non-Hodgkin's lymphomas
Autoimmune disorders (some)

› Classic Immunophenotype:
  • CD45dim+
  • High SSC (Side light scatter)
  • CD13dim+
  • CD16-
  • CD15dim+

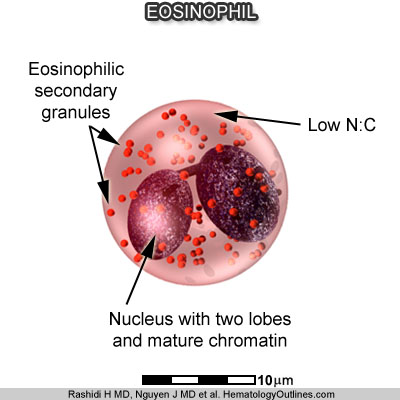

› Cartoon Image:



Click and drag
RBC
for direct comparison

› Misc:
  • Increased amounts are commonly associated with: Drugs Allergy Infection (specially invasive multicellular parasites) Neoplasm (e.g. Myeloid neoplasms such as some AMLs or MPNs) Idiopathic
